JS-5.3 AllSpin Swinging-Bucket Rotor and Buckets
Product No:368690

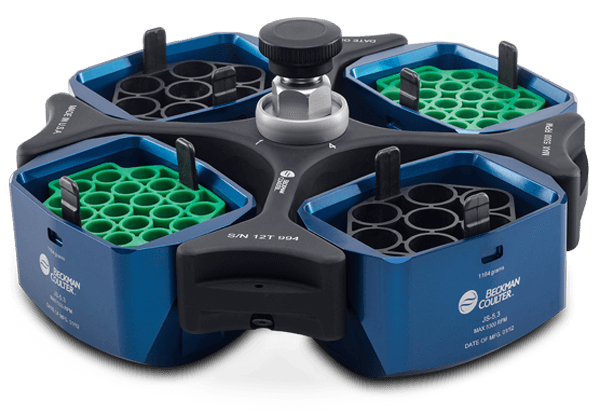

JS-5.3 Swinging-Bucket Rotor, Anodized Aluminum. Four-place rotor with anodized aluminum buckets designed for use with adapters to accommodate a wide range of tubes and bottles. Rotor buckets are interchangeable with microplate carriers. Includes tie-down knob. Major applications: Rapid sedimentation of protein precipitates, large particles, cells, and cell debris. It can be used for binding studies and separating serum from whole blood. For use in Avanti J-E and J-26 XP Series centrifuges only.
$11,974.00 List Price - $11,974.00
Resources + Tools
Product Specifications
| Platform | Avanti |
| Rotor Type | Swinging-Bucket (High Performance) |
| Maximum RPM | 5,300 rpm |
| Max g-Force | 500-mL conical:6870 x g |
| k-Factor | 7,730 |
| Nominal Capacity | 2000 mL |
| rMAX | 500-mL conical: 218.4 Deep-well Plates: 194.8 |
| rMIN | 500mL conical: 92.7 Deep-well Plates: 164.3 |
| rAV | Conical bottles: 179.6 mm, Deep-well plates: 155.6 mm |
| Materials | Anodized Aluminum |
Related Products or Parts

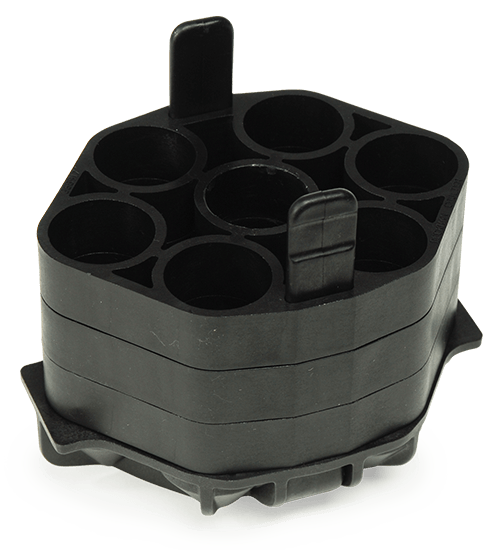

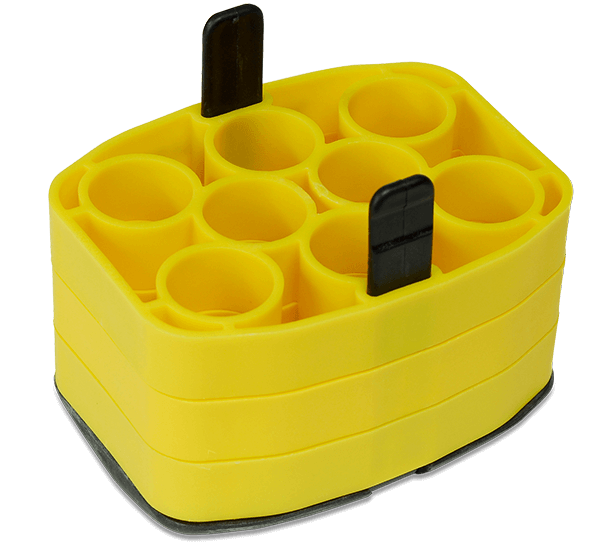

13mm Diameter Polypropylene Tube Adapter Assembly, Quantity of Four
